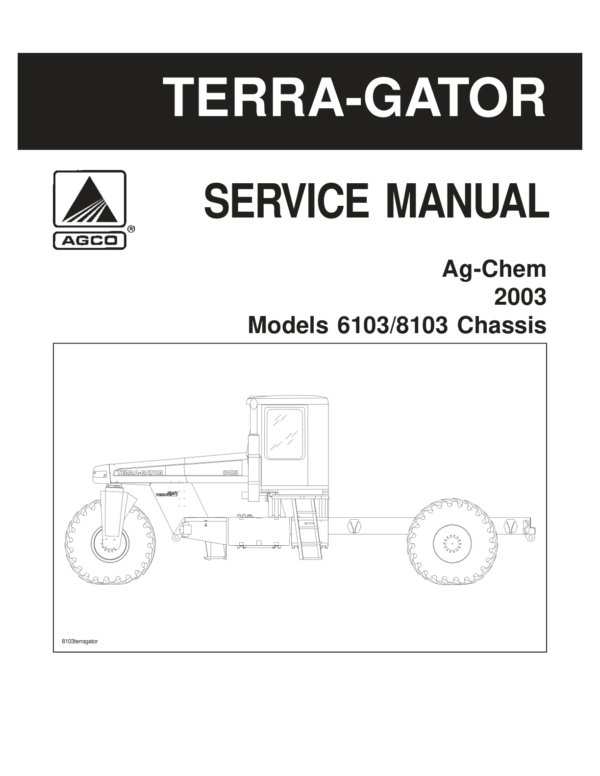

Ag-Chem 6103, 8103 TerraGator Chassis Service Repair Manual (2003) - Image 1

Ag-Chem 6103, 8103 TerraGator Chassis Service Repair Manual (2003)

0 out of 5
( There are no reviews yet. )

$24.00

Manual Included:

  • Service Repair Manual: 210 Pages

Specifications:

  • Brand: Ag-Chem
  • Model: 6103, 8103
  • Type: TerraGator Chassis
  • Manuals: Service Repair Manual
  • Publication Numbers: AG727567
  • Year: 2003
  • Language: English
  • Format: PDF
Category:

Description

Table of Contents:

  • DESCRIPTION
  • Removal
  • Installation
  • CAB FILTRATION
  • Primary Fresh Air Filter
  • Secondary Fresh Air Filter
  • Recirculation air filter
  • AIR RIDE SEAT
  • Removal
  • Installation
  • HEATING, VENTILATION, AIR CONDITIONING (HVAC)
  • Description
  • Air Conditioning Compressor
  • Air Conditioning Condenser
  • Receiver Dryer
  • Air Conditioning Evaporator/ Expansion Valve
  • Heater Core
  • HVAC ELECTRICAL TROUBLESHOOTING AND REPAIR
  • Checking Power on the Mode Switch (A/C or Heater)
  • Checking the 75 amp HVAC relay
  • Checking the Electronic Water Valve
  • Checking the Fan Speed Switch
  • Checking for Power at the Blower Motor with the Fans Speed Switch in Low
  • Checking for Power at the Blower Motor with the Fans Speed Switch in Medium
  • Checking for Power at the Blower Motor with the Fans Speed Switch in High
  • Checking for Ground at the Blower Motor
  • Checking Power to the Air Conditioning Compressor
  • Checking Power on Pin 56 of the 70 Pin Connector
  • Checking for Power to the Pressure Blower
  • 9-Electrical.pdf
  • ELECTRICAL SYSTEM
  • DESCRIPTION
  • Ignition Circuit
  • The Start Signal
  • The Run Circuit
  • The neutral-start circuit
  • Fuse Block 1 (FB1) Circuit
  • Fuse Block 2 (FB2) Circuit
  • Fuse Block 3 (FB3) circuit
  • Hazard light circuit (Upper cab & system)
  • Turn signal circuit (Chassis & system)
  • Brake light Circuit
  • Parking and taillight circuit
  • High and Low headlight circuit
  • Work light switches 1 & 2
  • Auxiliary work light switches 3 & 4
  • Reverse lights and alarm circuit
  • Dome light and door switch circuit
  • Electronic Instrument Panel (EIP) power and ground
  • Windshield wiper circuit
  • Air horn circuit
  • Auxiliary 3 pin power plug-in circuit
  • Cigarette lighter power plug in circuit
  • Fuel level sender circuit
  • AM/FM stereo radio and auxiliary radio plug in circuit
  • GPS 1 and GPS 2 plug in circuit
  • Radar Speed Sensor & Radar Amplifier
  • 10-Sheetmetal.pdf
  • SHEETMETAL
  • DESCRIPTION
  • Rear hood
  • Intake screen
  • Front hood assembly
  • Battery box
  • Utility Box: 8103 only
