Mitsubishi 2FBC15, 2FBC18, 2FBC20 Forklift Service Manual

Mitsubishi 2FBC15, 2FBC18, 2FBC20 Forklift Service Manual

$32.00

Mitsubishi 2FBC15, 2FBC18, 2FBC20 Forklift  Service Manual: 293 Pages

English
Format: PDF



Category:

Description

Mitsubishi 2FBC15, 2FBC18, 2FBC20 Lift Truck Manual

Lift Truck Forklift Model: 2FBC15, 2FBC18, 2FBC20
English
Format: PDF

Mitsubishi 2FBC15, 2FBC18, 2FBC20 Forklift  Service Manual: 293 Pages

Forklift Manual Table of Content:

  • General Information
  • Front Axle & Reduction Differential
  • Transfer Assembly
  • Rear Axle
  • Brake System
  • Steering System
  • Hydraulic System
  • Mast and Forks
  • Troubleshooting Section
  • Maintenance Service Data

This service manual deals with all components or systems of the Mitsubishi Forklift Trucks, except for the electrical system, which is covered in a Controller manual

This device adjusts the drum-to-lining clearance automatically. As the clearance increases due to lining wear, the lever mechanism of this device turns the adjusting screw by one notch or tooth to reposition the shoes closer to the drum. This corresponds to 1/24 of one rotation or 15° . In the course of usage, the adjusting process repeats itself at Sequence

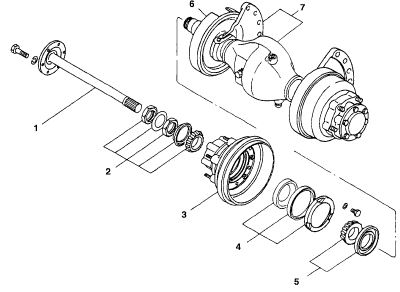

1 . Axle shaft
2. Lock nut, lock washer, oil seal, and tapered roller bearing (inner bearing)
3. Hub & drum assembly [Front wheel hub, brake drum, wheel bolts, drum nuts, and tapered roller bearing (outer bearing)] long intervals.
4. Tapered roller bearing (outer bearing), oil seal, and oil deflector
5. Tapered roller bearing (inner bearing), and seal retainer
6. Brake assembly
7. Frame support and axle housing

Start By:
1. Remove the mast. (For replacement of the front axle housing and disassembly of the differential, refer to section, MAST AND FORKS.)
2. Jack up the truck.
3. Support the front end of the truck at both sides with blocks or stands to keep the truck in a horizontal position.
4. Remove the front wheels.
