Liebherr R952, R952 HD Excavator Operators Service Repair Manual

0 out of 5
( There are no reviews yet. )

Price range: $10.00 through $42.00

Manual Included:

PIN/Type – 208

  • Service Repair Manual: 1204 Pages

PIN/Type – 214, 264, 384

  • Service Repair Manual: 1204 Pages

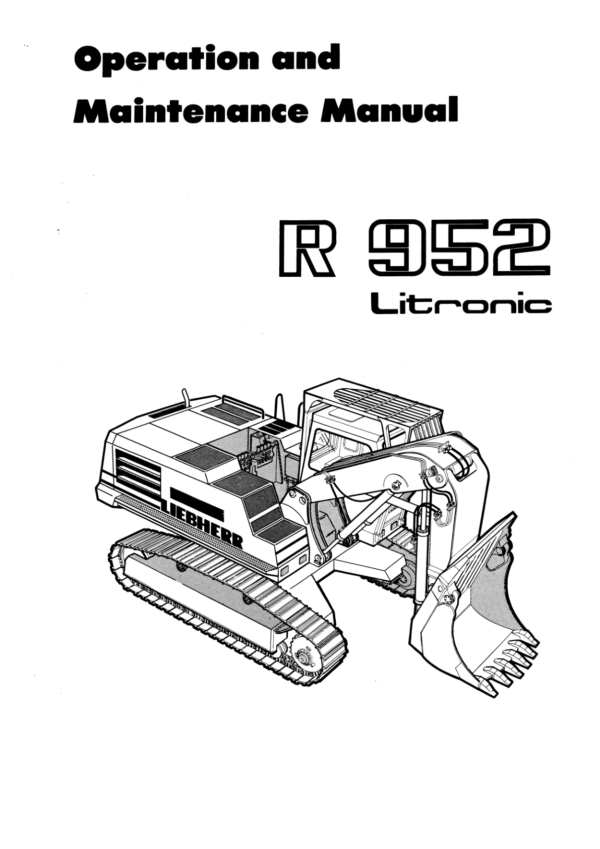

  • Operators Manual (SN 801: 938) – 67 Pages
  • Operators Manual (SN after 939): 89 Pages

Specifications:

  • Type: Excavator
  • Model: R952, R952 HD
  • PIN/Type: 208, 214, 264, 384
  • Manuals: Operators Manual, Repair Manual
  • Language: English
  • Format: PDF
Categories: ,

Description

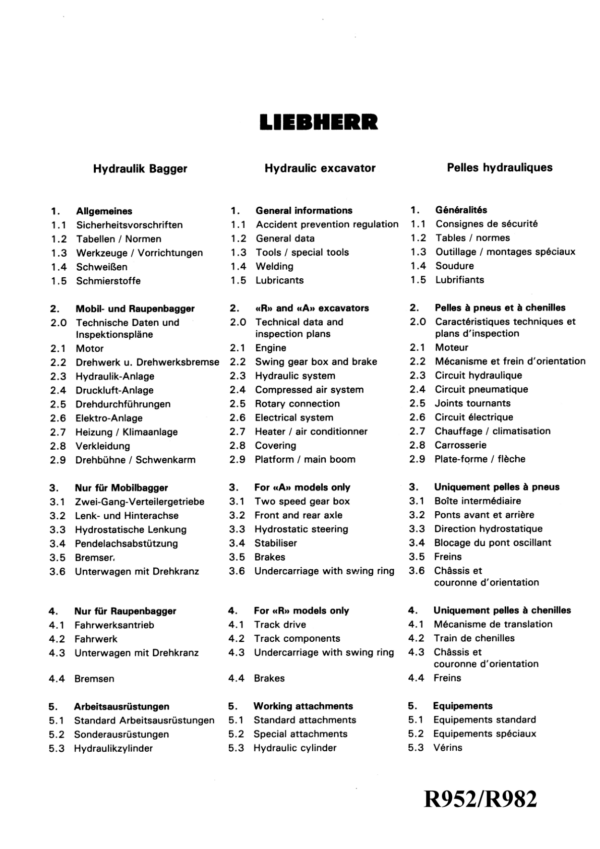

Table of Content – Liebherr R952, R952 HD Excavator Type 208 Manual

  • Index
  • chap 1.2 General data
  • chap 1.3 Tools

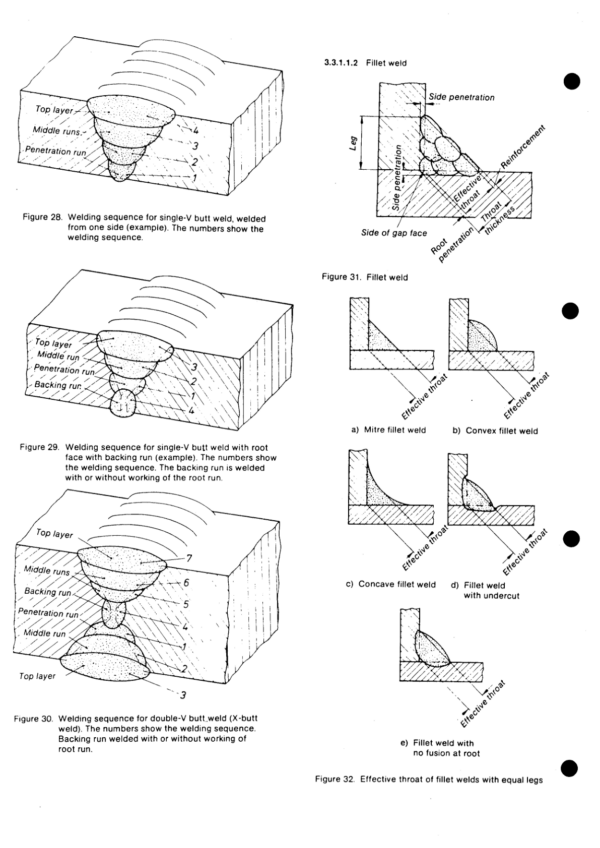

  • chap 1.4 Welding
  • chap 2.0 Technical data
  • chap 2.1 Engine
  • chap 2.2 Swing gear
  • chap 2.3 Hydraulic system
  • chap 2.4 Air pressure system
  • chap 2.5 Rotary connection

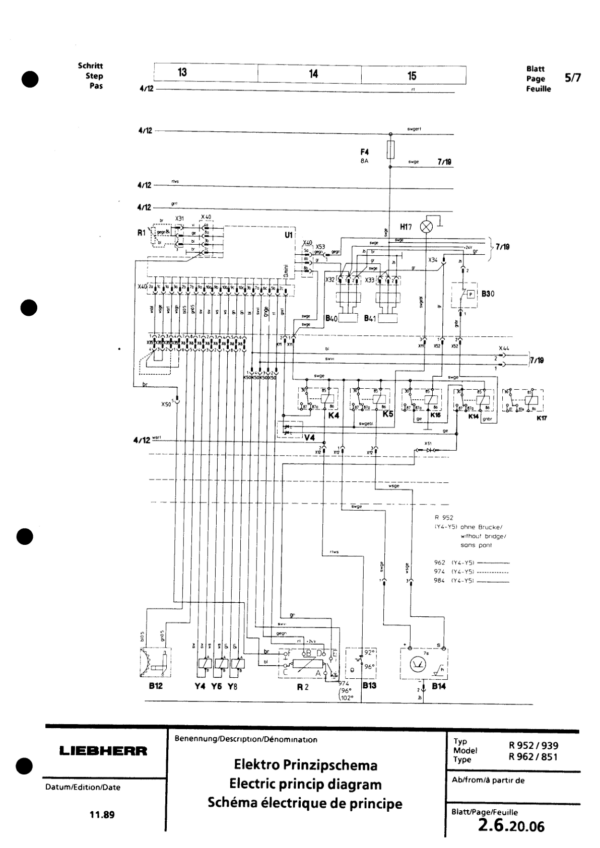

  • chap 2.6 Electrical system
  • chap 2.7 Heater / Air conditioning
  • chap 4.1 Travel gear
  • chap 4.2 Track components
  • chap 4.3 Undercarriage
  • chap 4.4 Travel brakes
  • chap 5.2 Attachment
  • chap 5.3 Hydraulic cylinder

Additional information

PIN Type

Type 208, Type 214 & 264 & 384
Manual

Service Repair Manual, Operators Manual (SN 801 – 938), Operators Manual (SN after 939)
