John Deere Two-Piece Front-Wheel Drive Axles 730 to 755 (Version 2), 6R, 6M, and 6RCMC Component Technical Manual (CTM412719)

$30.00

Manual Included:

  • Component Technical Manual: 172 Pages

Specifications:

  • Brand: John Deere
  • Model: Two-Piece Front-Wheel Drive Axles (Version 2), Tractors 6R, 6M, 6RC, and 6MC, 730, 733, 735, 740, 745, 750, 755 and 755 HD
  • Type: Drive Axles
  • Manuals: Component Technical Manual
  • Publication Numbers: CTM412719
  • Language: English
  • Format: PDF
Categories: ,

Description

Table of Content (CTM412719 โ€“ Component Technical Manual)

  • Section 00 โ€” Safety and General Repair Information
    • Group 01 โ€” Safety Information
    • Group 02 โ€” General Repair Information
  • Section 10 โ€” Front-Wheel Drive Axles
    • Group 000 โ€” Axles in Section 10
    • Group 005 โ€” Trunnion
    • Group 010 โ€” Planetary Drive and Wheel Hub
    • Group 015 โ€” Steering Knuckle and Wheel Angle Sensor
    • Group 020 โ€” U-Joint Drive Shafts
    • Group 025 โ€” Steering Cylinder and Tie Rods
    • Group 030 โ€” Axle Housing and Bevel Pinion Drive Shaft
    • Group 040 โ€” Differential
    • Group 100 โ€” Description and Theory of Operation

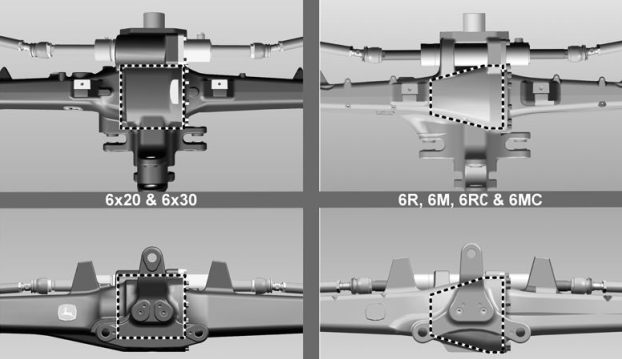

The same axle numbers are used for the version 1 axles, but these are not mentioned in this manual. Version 1 (left) is used for 6×20 and 6×30 tractors. Version 2 (right) is used for 6R,6M, 6RC, and 6MC tractors. Identify the axle version by looking at the center part of the axle. Version 1 has a square center part and version 2 has a trapezoidal center part.
