John Deere Three-Piece Front-Wheel Drive Axles 730 up to 755 (M40, M50 & M60) Component Technical Manual (CTM408719)
$34.00
Manual Included:
- Component Technical Manual: 352 Pages
Specifications:
- Brand: John Deere
- Model: Three-Piece Front-Wheel Drive Axles ( 730 (M40LD), 735 (M40), 736 (M40), 740 (M40), 745 (M40HD), 750 (M50LD), 750 (M50), 750 (M50HD), 750 (M60LD), 755 (M60), 755HD (M60HD), 10234951 and 10226435 (M60HD)
- Type: Drive Axles
- Manuals: Component Technical Manual
- Publication Numbers: CTM408719
- Language: English
- Format: PDF
- Description
- Reviews (0)
Description
Table of Content (CTM408719 – Component Technical Manual)
- Section 00 — Safety and General Repair Information
- Group 01 — Safety Information
- Group 02 — General Repair Information
- Section 10 — Front-Wheel Drive Axles (735 up to 755)
- Group 000 — Axles in Section 10
- Group 005 — Trunnion

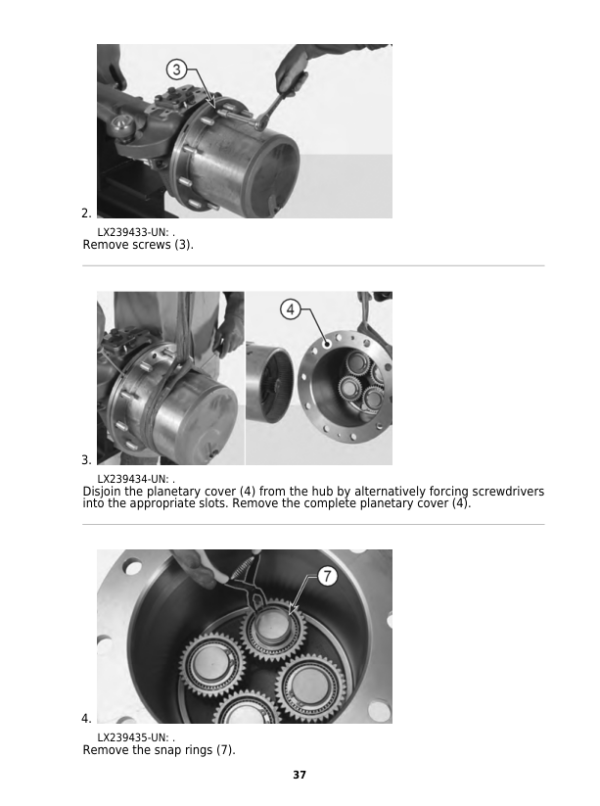

- Group 010 — Planetary Drive and Wheel Hub
- Group 015 — Steering Knuckle and Wheel Angle Sensor
- Group 020 — U-Joint Drive Shafts

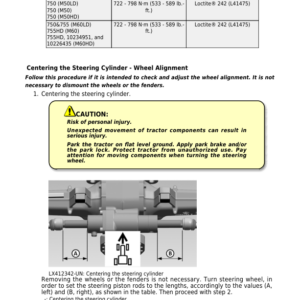

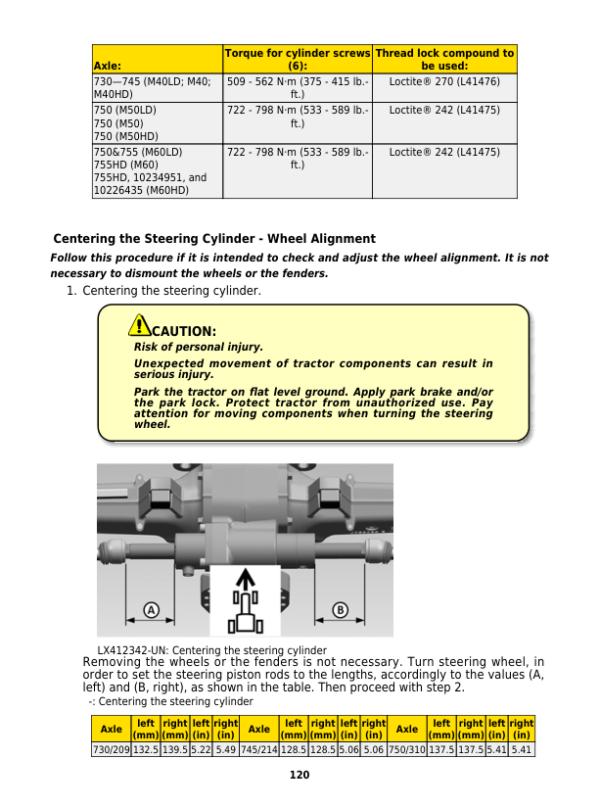

- Group 025 — Steering Cylinder and Tie Rods
- Group 030 — Axle Housing and Bevel Pinion Drive Shaft
- Group 040 — Differential Without Hydraulic Differential Lock

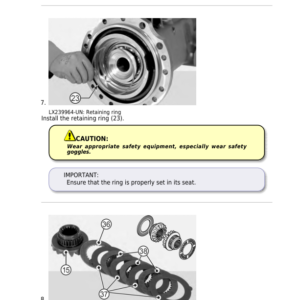

- Group 045 — Differential With Hydraulic Differential Lock
- Section 20 — Front-Wheel Drive Axles (730 up to 736)
- Group 000 — Axles in Section 20
- Group 005 — Trunnion
- Group 010 — Planetary Drive and Wheel Hub
- Group 015 — Steering Knuckle and Wheel Angle Sensor
- Group 020 — U-Joint Drive Shafts
- Group 025 — Steering Cylinder and Tie Rods
- Group 030 — Axle Housing and Bevel Pinion Drive Shaft
- Group 040 — Differential
- Section 100 — Theory of Operation
- Group 010 — Theory of Operation
