John Deere DB40, DB50, DB74, DB90 Series Planters Service Repair Manual (Built in South America)

Description

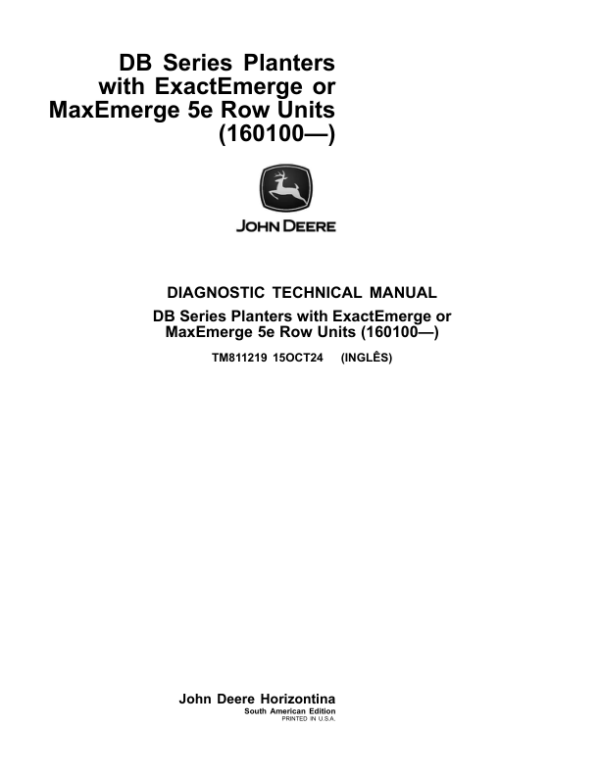

Table of Content (Diagnostic Technical Manual – TM811219)

Section 210 — General Information
Group 05A — Safety
Group 05B — General References
Group 05C — References for Technical Information
Group 05D — Diagnostic Philosophy
Section 211 — Diagnostic Trouble Codes
Group CDC — Coulter Disk Controller (CDC) Diagnostic Trouble Codes
Group DFC — DownForce Controller (DFC) Diagnostic Trouble Codes
Group EPG — Eletrical Power Generation (EPG) Diagnostic Trouble Codes
Group IAC — Implement Auxiliary Controller (IAC) Diagnostic Trouble Codes
Group JL2 — MTG/JDLink R-Modem 4G (JL2) Diagnostic Trouble Codes
Group SHC — Singulation Head Controller (SHC) Diagnostic Trouble Codes
Group SMU — Soil Manipulation Unit (SMU) Diagnostic Trouble Codes
Section 212 — Observable Symptoms
Group 10A — Observable Symptoms
Section 240 — Electrical System
Group 05 — General Information
Group 10 — Calibration Procedure
Group 20A — Ag Management Solutions—Theory of Operation
Group 20B — Central Commodity System (CCS)—Theory of Operation
Group 20C — Easy Fold System—Theory of Operation
Group 20D — Enhanced Monitoring—Theory of Operation
Group 20E — Frame—Theory of Operation
Group 20F — High Current Power and Ground—Theory of Operation
Group 20G — Lighting—Theory of Operation
Group 20H — Pneumatic System—Theory of Operation
Group 20I — Row Unit—Theory of Operation
Group 20J — Seed Monitoring—Theory of Operation
Group 20K — Tractor Power Generation—Theory of Operation
Group 20L — Vacuum System—Theory of Operation
Group 30B — Central Commodity System (CCS)—Schematics
Group 30E — Frame—Schematics
Group 30F — High Current Power and Ground Schematics
Group 30G — Lighting—Schematics
Group 30H — Pneumatic System—Schematics
Group 30I — Row Unit—Schematics
Group 30K — Tractor Power Generation—Schematics
Group 50B — Central Commodity System (CCS)-Diagnostics
Group 50E — Frame-Diagnostics
Group 50F — High Current Power and Ground-Diagnostics
Group 50G — Lighting-Diagnostics
Group 50H — Pneumatic System-Diagnostics
Group 50I — Row Unit-Diagnostics
Group 50K — Tractor Power Generation-Diagnostics
Section 245 — Electronic Control Units

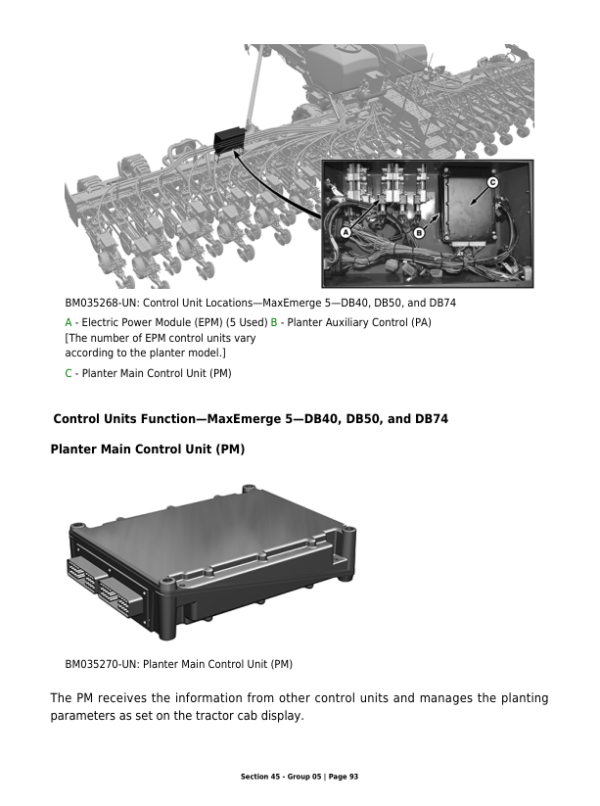

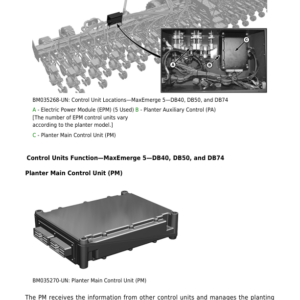

Group 05 — General Information
Group 10 — Diagnostic Addresses by Control Unit
Group 20 — Theory of Operation
Group 30 — Schematics
Group 50 — Diagnostics
Section 249 — Components Electrical Systems—Component Information
Group 40W — Harness Location
Section 270 — Hydraulic System
Group 05 — General Information
Group 20 — Theory of Operation
Group 30 — Schematics
Group 50 — Diagnostics
Section 279 — Hydraulic System—Components
Group 40A — Accumulator
Group 40C — Cylinders
Group 40D — Check Valves
Group 40G — Manifolds
Group 40M — Motors
Group 40O — Orifices
Group 40V — Valves
Group 40X — Coupler
Group 40Y — Solenoid Valves
Section 280 — Pneumatic System
Group 20 — Theory of Operation
Group 30 — Schematics
Group 50 — Diagnostics

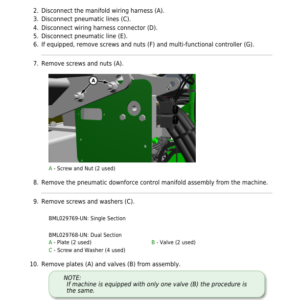

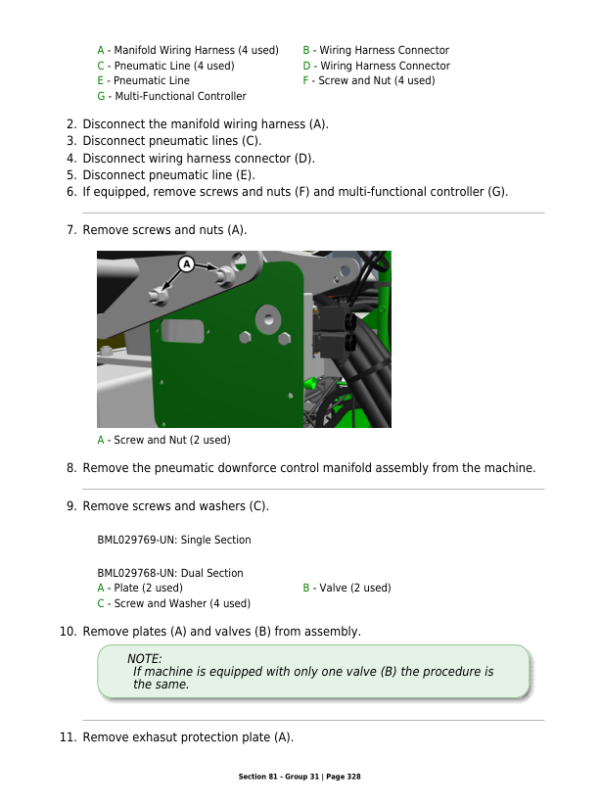

Section 289 — Pneumatic System—Components
Group 40A — Accumulators
Group 40B — Sensors
Group 40D — Check Valves
Group 40F — Filters
Group 40G — Assembly Groups
Group 40P — Pumps
Group 40R — Reservoirs
Group 40V — Valves
Group 40Y — Solenoid Valves
