Description

Tigercat 845E, L845E Feller Buncher Repair Service Manual

Machine Type:  Tigercat Feller Buncher
Language: English
Format: PDF

1. Publication: Issue 1.2, September 2019
Serial Number:
845E – From 84513001 to 84513500
L845E – From 84523001 to 84523500

• Tigercat 845E, L845E Feller Buncher Repair Service Manual – 722 Pages
• Tigercat 845E, L845E Feller Buncher Operators Manual – 340 Pages

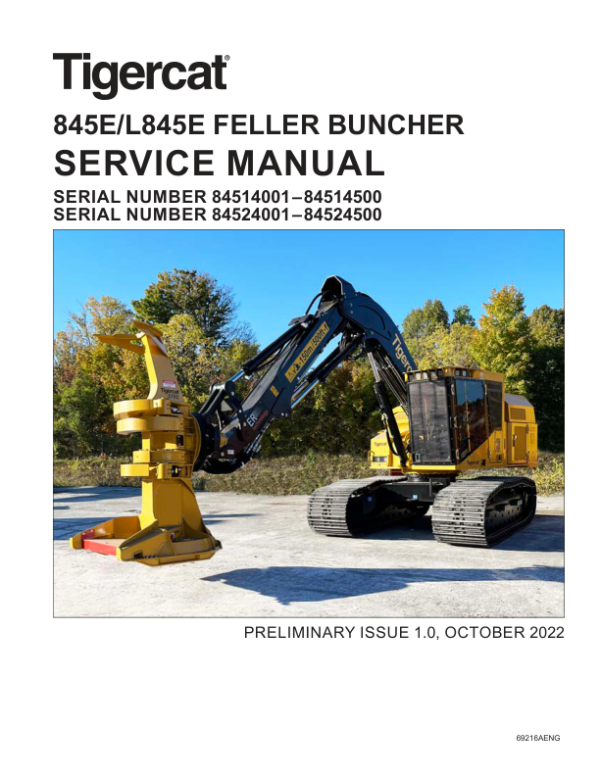

2. Publication: Issue 1.0, October 2022
Serial Number:
845E – From 84514001 to 84514500
L845E – From 84524001 to 84524500

• Tigercat 845E, L845E Feller Buncher Repair Service Manual – 710 Pages
• Tigercat 845E, L845E Feller Buncher Operators Manual – 330 Pages

Table of Content of Tigercat 845E, L845E Manual

INTRODUCTION……………………………………………………………………………………………………………………………….v
MACHINE IDENTIFICATION AND SERIAL NUMBERS……………………………………………………………………..vi
SAE STANDARDS FOR MACHINE OPERATOR PROTECTIVE STRUCTURES ………………………………. vii
NON-APPROVED FIELD PRODUCT CHANGES…………………………………………………………………………………viii
REGULATORY INFORMATION…………………………………………………………………………………………………………..ix
WARRANTY–EPA…………………………………………………………………………………………………………………………x–xi
SAFETY……………………………………………………………………………………………………………………………………………1
USING HIGH-SPEED DISC SAWS SAFELY…………………………………………………….APPENDIX TO SECTION 1
CONTROLS AND OPERATION……………………………………………………………………………………………………………2
LUBRICATION AND MAINTENANCE…………………………………………………………………………………………………..3
HYDRAULIC SYSTEM……………………………………………………………………………………………………………………….4
PILOT SYSTEM…………………………………………………………………………………………………………………………………5
ELECTRICAL AND COMPUTERS………………………………………………………………………………………………………..6
ENGINE AND ANTI-STALL………………………………………………………………………………………………………………….7
COOLING SYSTEM………………………………………………………………………………………………………………………….10
TRACK DRIVE…………………………………………………………………………………………………………………………………11
BOOM FUNCTIONS…………………………………………………………………………………………………………………………12
LEVELING………………………………………………………………………………………………………………………………………13
SWING……………………………………………………………………………………………………………………………………………15
SAW DRIVE…………………………………………………………………………………………………………………………………….17
ACCUMULATOR, CLAMPS, AND WRIST……………………………………………………………………………………………18
MISCELLANEOUS…………………………………………………………………………………………………………………………..25

The 845E, L845E Feller Buncher is designed for harvesting trees, selective felling, thinning and final felling applications in plantations and natural stands.

The operator’s manual will assist the operator with the techniques of proper and safe operation of the 845E, L845E Feller Buncher. There is also important information regarding the safe operation of the saw head.

The service manual contains safety and servicing procedures and a preventive maintenance schedule to assist in repair and to ensure optimum machine performance. For manual part numbers, see the title page in each manual.
