Liebherr R984C Litronic Excavator Manual

Excavator Model Applicable Model:
R 984 C,  R 984 C-HD Litronic High Rise from 40842 (Type 1138)
Language: English
Publication: 10816918
Format: PDF
November 2009

Liebherr R984C Litronic Excavator Service Manual – 305 Pages
Operating Manual – 227 Pages

Table of Content of the Service Manual:

• 1 General information
• 2 Tools
• 3 Technical data / Maintenance guidelines
• 4 Engine
• 5 Coupling / Splitterbox
• 6 Hydraulic system
• 7 Hydraulic components
• 8 Electrical system
• 9 Swing gear
• 10 Swing ring
• 11 Travel gear / Two Speed Gear Box
• 12 Track components / Axles
• 13 Steering System
• 14 Oscillating Axle Stabilizer
• 15 Brake System
• 16 Special Attachments / Additional Hydraulic Installations
• 17 Cab / Air conditioning system
• 18 Undercarriage / Uppercarriage Attachments
• 19 Arrangement of Tanks

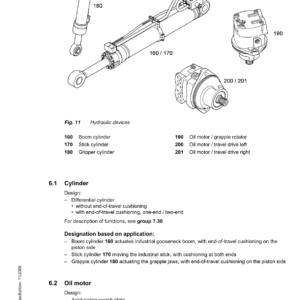

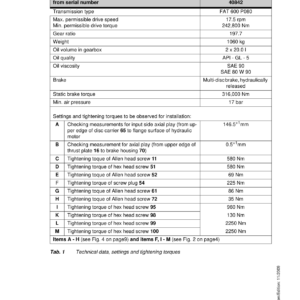

This manual contains technical data, design and functional descriptions, as well as instructions as regards the operation and the adjustment of machine settings. The document includes a number of drawings, functional diagrams, as well as detailed views of units and assemblies of LIEBHERR hydraulic excavators.

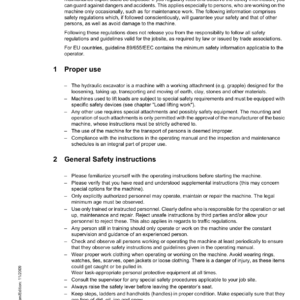

This operating manual has been specifically devised for machine operators and maintenance personnel. It contains important warnings, information and tips regarding the maintenance and proper operation of the machine. It assists you in becoming familiar with the functions and features of the machine and helps prevent incorrect operation.
By strictly adhering to the instructions in the operating manual, you can significantly enhance the reliability and service life of the machine.

The operating manual is an integral part of the scope of delivery of the machine. Ensure that a copy is at all times available in the storage compartment in the operator’s cab.
Carefully read the operating manual before starting the machine and then regularly read it again. All persons carrying out work on or with the machine must be fully familiar with the content of the operating manual and must adhere to the instructions.

Such work include:
– Machine operation including tooling, troubleshooting during work, general care and cleaning, disposal of fuels and lubricants.
– Maintenance including inspection, servicing and repair.
– Transport or loading of the machine.
