Liebherr A910, A912, A914, A918 Tier 4F Compact Excavator Service Manual

Excavator Model :
A 910 Compact (4f) 87687 and up (Type 1505)
A 912 Compact (4f) 83181 and up (Type 1506)
A 914 Compact (4f) 81693 and up (Type: 1507)
A 918 Compact (4f) 79713 and up (Type: 1508)
Language: English
Publication: 12206344
Format: PDF
May 2017

Liebherr A910, A912, A914, A918 Tier 4F Compact Excavator Service Manual – 1687 Pages
Operators Manual – 342 Pages

Table of Content of the Service Manual:

• Introduction
• Technical data
• Maintenance
• Drive group
• Cooling system
• Working hydraulics
• Hydraulic components
• Steering System
• Brake System
• Electrical system
• Transmission/ Travel gearbox
• Axles / Drive
• Steel components – basic machine
• Working attachment
• Operator’s cab, heating and air conditioning
• Lubrication system
• Slewing gearbox and slewing ring

• Equipment / options
• Diagnosis

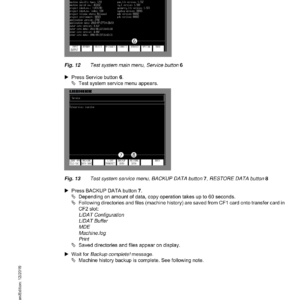

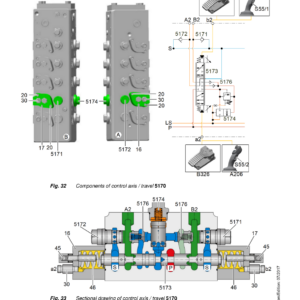

This manual contains technical data, design and functional descriptions as well as instructions for the operation and the adjustment of machine settings. The document includes a number of drawings, functional schematics and detailed views of units and assemblies of Liebherr hydraulic excavators.

The documentation has been designed to support customer support services, but does of course not replace proper technical training and qualification of the user, and participation in Liebherr operator training courses.
General basic technical information is not included in this manual. For operating instructions and information on spare parts, please refer to the separate documentation.

During all work on the machine, strictly adhere to the relevant accident prevention and safety regulations.
