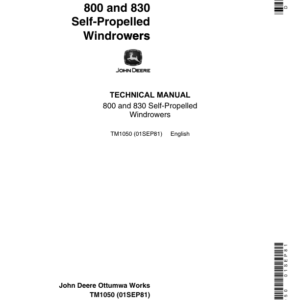

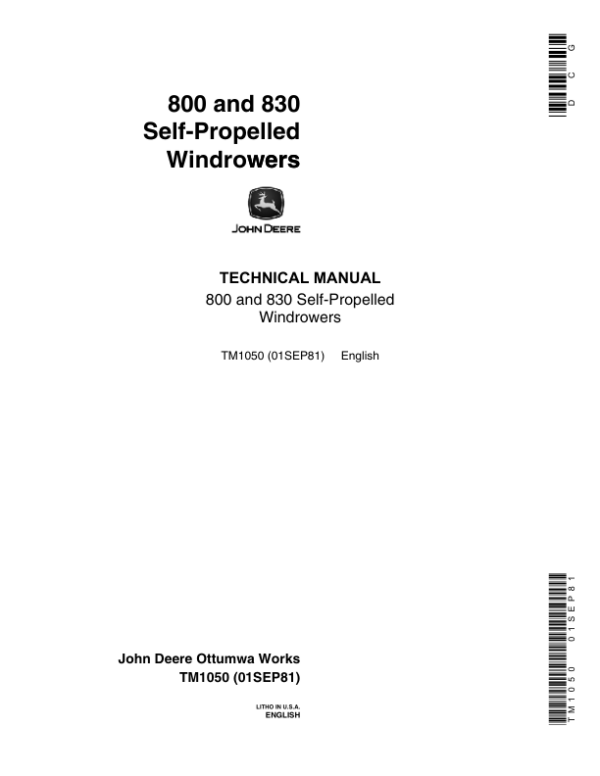

John Deere 800, 830 Self Propelled Windrowers Repair Technical Manual (TM1050)

Description

Table of Content – Technical Manual TM1050

SECTION 10 – GENERAL
Group 5 – Specifications
Group 10 – Tune-Up and Adjustment
Group 15 – Lubrication

SECTION 20 – ENGINE
Group 5 – General Information

SECTION 30 – FUEL SYSTEM
Group 5 – General Information

SECTION 40 – ELECTRICAL SYSTEM
Group 5 – Description and Wiring Diagrams
Group 10 – Lights

SECTION 50 – POWER TRAIN
Group 5 – General Information and Diagnosing Malfunctions
Group 10 – Variable Drive Sheave
Group 15 – Variable Driven Sheave and Shaft
Group 20 – Clutch and Reversing Drive Case

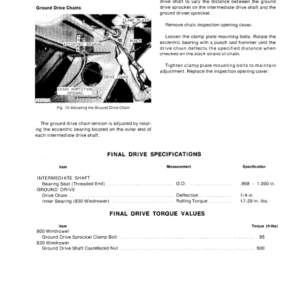

Group 25 – Final Drives

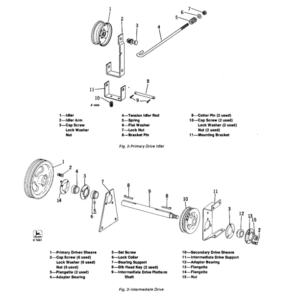

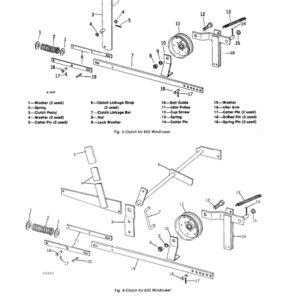

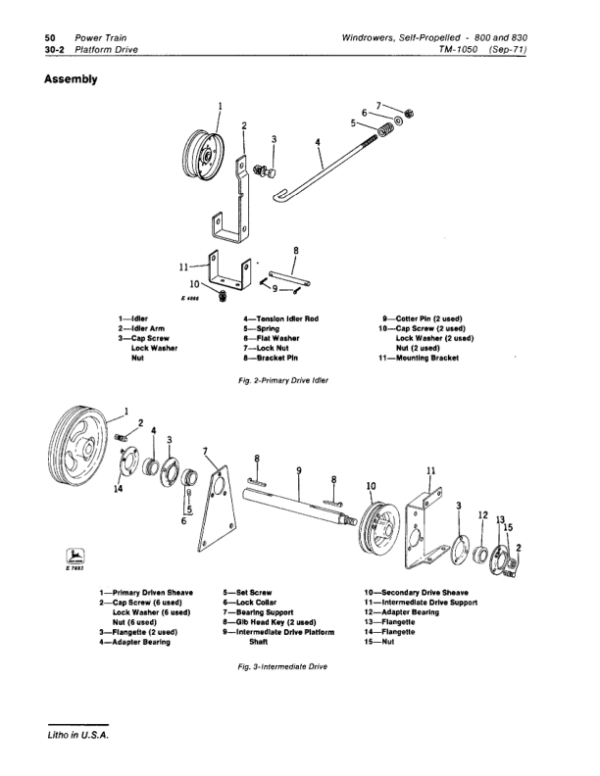

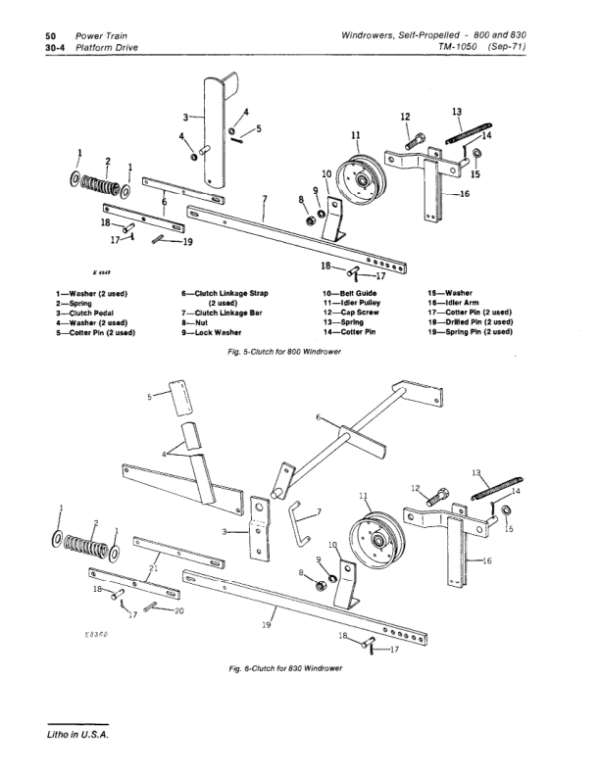

Group 30 – Platform Drive

SECTION 60 – STEERING AND BRAKES
Group 5 – Steering
Group 10 – Brakes

SECTION 70 – HYDRAULIC SYSTEM
Group 5 – Components and Tests
Group 10 – Pump and Reservoir
Group 15 – Control Valve
Group 20 – Hydraulic Cylinders
