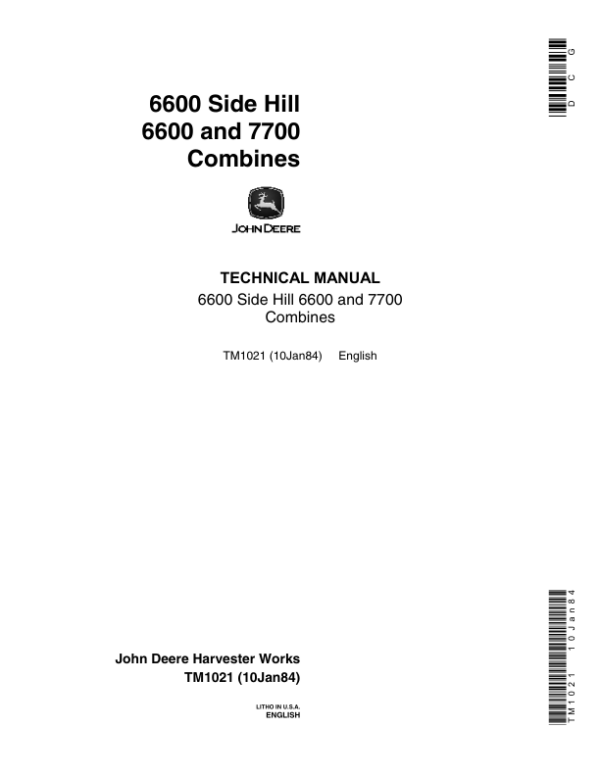

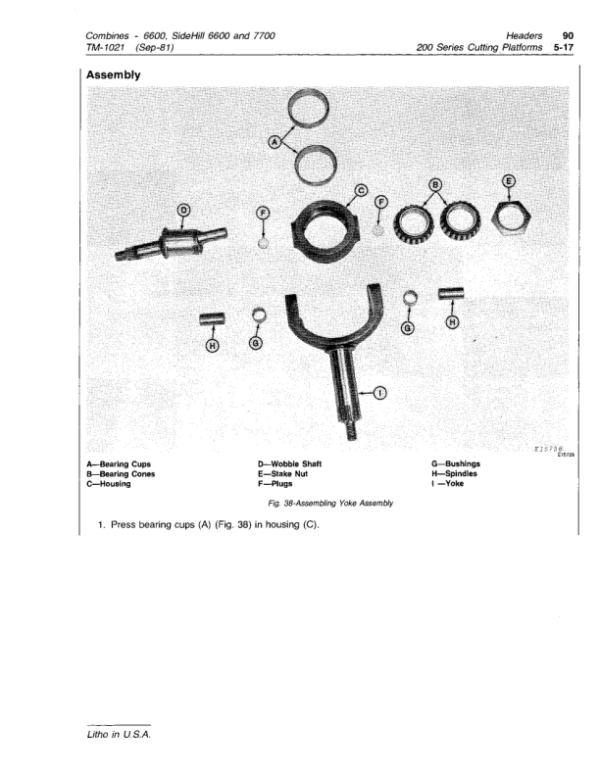

John Deere 6600, 6600 Side Hill, 7700 Combines Repair Technical Manual (TM1021)

Description

Table of Content – Technical Manual TM1021

SECTION 10 – GENERAL
Group 5 – General Specifications

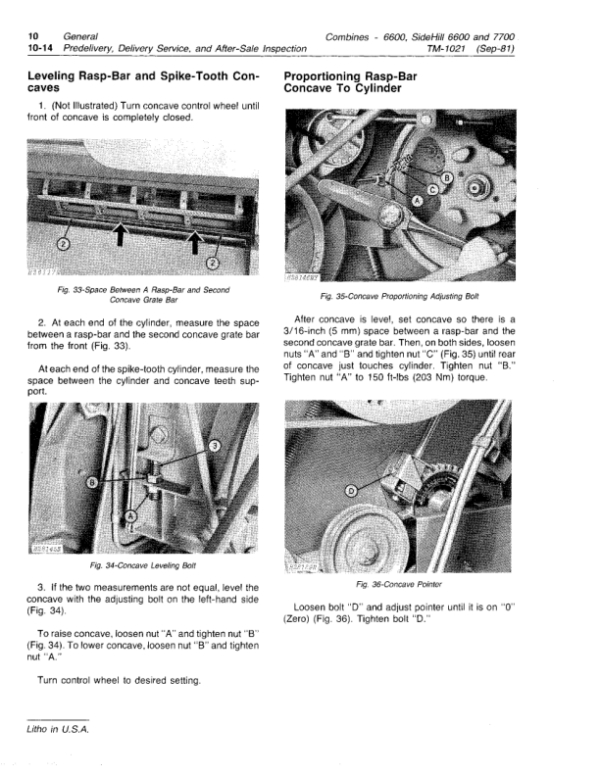

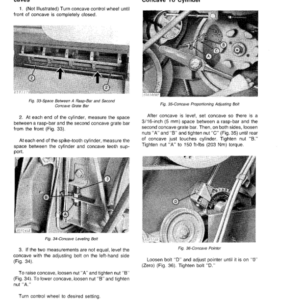

Group 10 – Predelivery, Delivery Service, and After-Sale Inspection
Group 15 – Lubrication
Group 20 – Diagnosing and Testing Procedures
Group 25 – Tune-Up and Adjustment

SECTION 20 – ENGINES
Group 5 – General Information, Diagnosis and Removal
Group 10 – Cylinder Head, Valves and Camshaft
Group 15 – Cylinder Block, Liners, Pistons and Rods
Group 20 – Crankshaft, Main Bearings and Flywheel
Group 25 – Lubrication System
Group 30 – Cooling System
Group 35 – Governor and Speed Control Linkage
Group 40 – Specifications and Special Tools

SECTION 30 – FUEL SYSTEM
Group 5 – Air Intake System, Fuel Tank and Electric Fuel Pump
Group 10 – Diesel Fuel System
Group 15 – Gasoline Fuel System
Group 20 – Specifications and Special Tools

SECTION 40 – ELECTRICAL SYSTEM
Group 5 – General Information, Wiring Diagrams and Electrical System Diagnosis
Group 10 – Motorola Charging Circuit
Group 15 – Delcotron Charging Circuit
Group 20 – Delco-Remy Starting Circuit
Group 25 – John Deere Starting Circuit
Group 30 – Ignition Circuit
Group 35 – Lights, Instruments and Accessory Circuits
Group 40 – Low Shaft Speed Monitor System
Group 45 – Harness Replacement
Group 50 – Specifications and Special Tools

SECTION 50 – POWER TRAIN
Group 5 – Clutch
Group 10 – Transmission
Group 15 – Differential
Group 20 – Final Drive

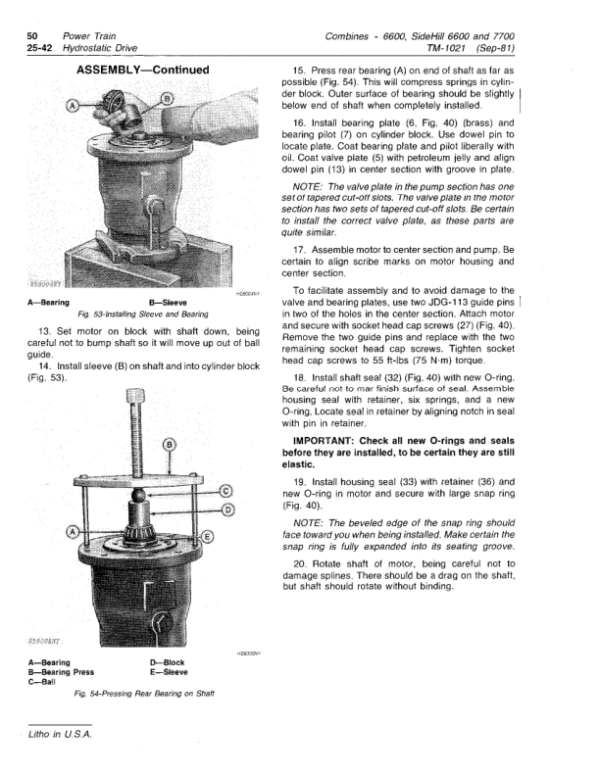

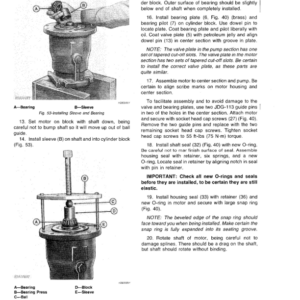

Group 25 – Hydrostatic Drive
Group 30 – Power Rear Wheel Drive
Group 35 – Posi-Torq Ground Drive
Group 40 – Tires and Wheels
Group 45 – Crawler Tracks
Group 50 – Specifications and Special Tools

SECTION 60 – POWER STEERING AND BRAKES
Group 5 – Power Steering
Group 10 – Brakes
Group 15 – Specifications

SECTION 70 – HYDRAULIC SYSTEM
Group 5 – Hydraulic System Operation
Group 10 – Hydraulic System Tests
Group 15 – Reservoir
Group 20 – Hydraulic Pumps
Group 25 – Hydraulic Valves
Group 30 – Hydraulic Cylinders
Group 35 – Hydraulic Motors
Group 40 – Hydraulic Oil Lines and Hoses
Group 45 – Specifications and Special Tools

SECTION 80 – OPERATOR’S CAB
Group 5 – Pressurizer System
Group 10 – Air Conditioning System
Group 15 – Heating System
Group 20 – Personal Posture Seat
Group 25 – Miscellaneous Components
